Brief Introduction

The SAE J1772 is compatible with models from brands such as BMW, Volkswagen, Audi, Mercedes, Porsche,

Volvo, Tesla and even Renault. It is one of the most popular connectors in terms of electric vehicles.

Mechanical Properties Mechanical life

no-load plug:>10000

Insertion force:<100N

Impact of external force:can afford 1m drop and 2t vehicle run over pressure

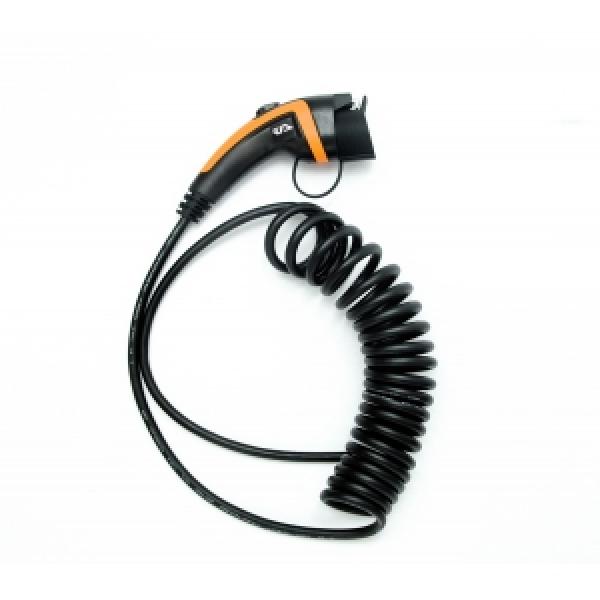

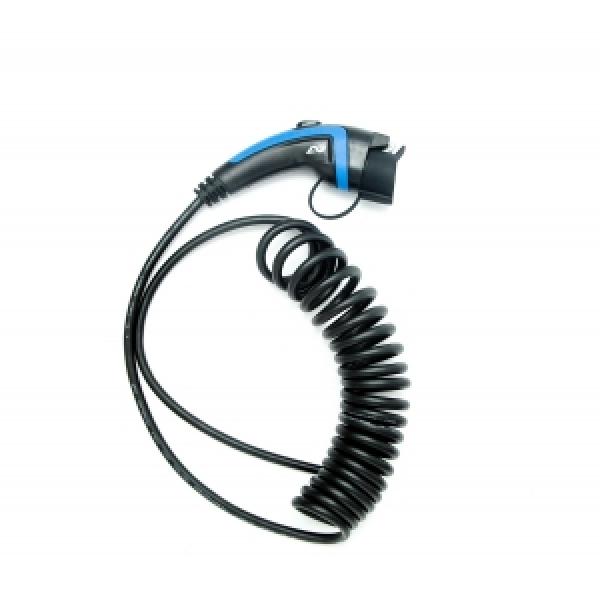

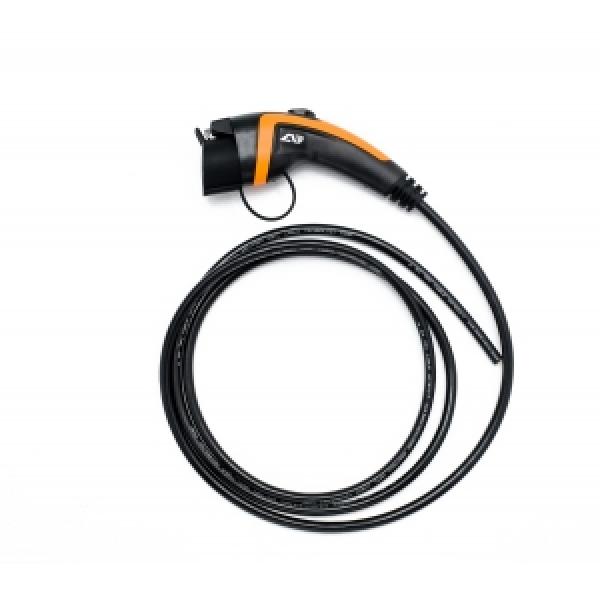

Electrical Performance of Type 2 EV Charging Cable

The rated current:16A,20A,32A

The rated voltage:120V,250V

Insulation resistance:> 1000MΩ (DC500V)

Pins temperature rise:<50K

Withstand voltage:2500V

Contact impedance:0.5mΩ Max
