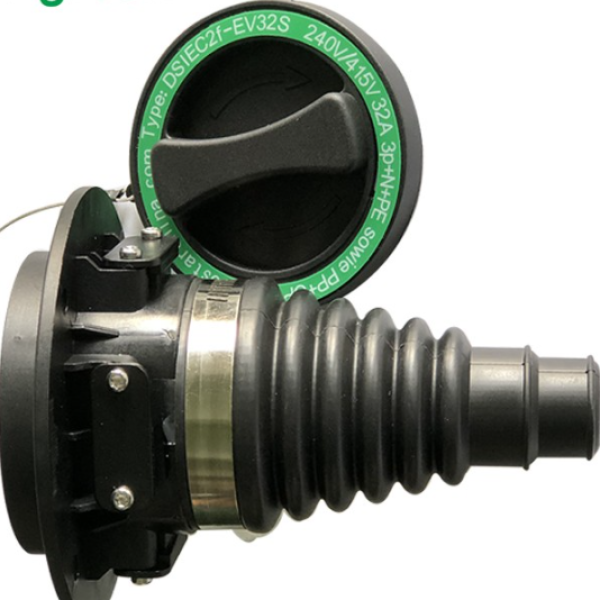

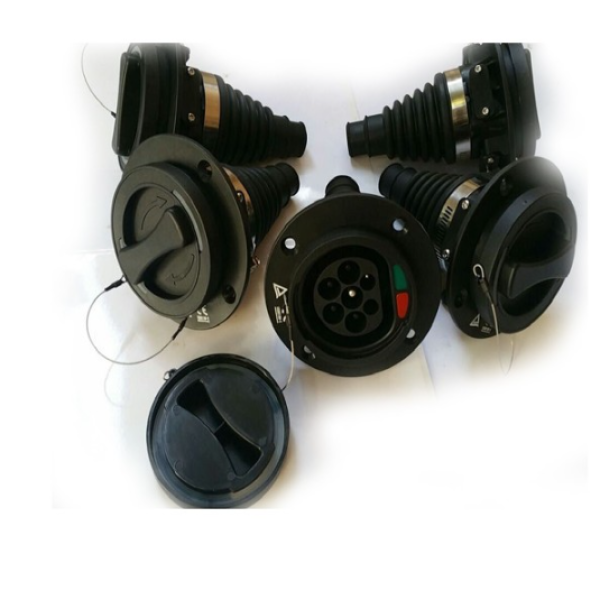

IEC 62196-2 EV Charging Inlet

$0.00

In Stock

Add to Wish List

IEC 62196-2 EV Charging Inlet. We have 16A and 32A options.

62196-2 inlet has two types: for EV side and for Power supply side.

This link is for EV side.

Mechanical Properties：Mechanical life

no-load plug> 10000

Insertion force:<100N

Impact of external force：can afford 1m drop and 2t vehicle run over pressure

Electrical Performance of Type 2 EV Charging Cable：The rated current：16A,32A

The rated voltage：120V,250V

Insulation resistance：>1000MΩ (DC500V)

Pins temperature rise：<50K

Withstand voltage：2500V

Contact impedance：0.5mΩ Max
