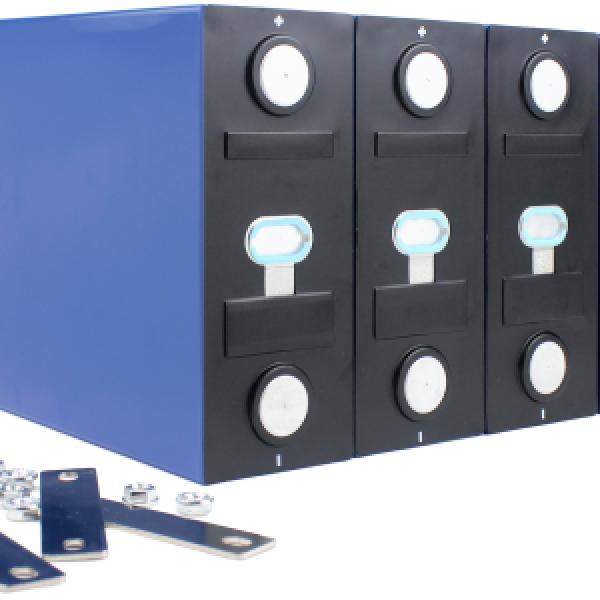

CALB 3.2V 280Ah prismatic lifepo4 cell
model: CALB L173F280A
-Qualified for RoHS & CCC winth high safely
-More than 9000 cycles under the designed working condition
-Anti-explosion safely valve applied
-Ceramic membrane technology applied to enhance safety
-Widely applications
| Battery Cell Type | Prismatic lithium Ion (Lifepo4) battery |
| Model | L173F280A |
| Nominal Voltage | 3.2V |
| Standard Capacity | 280Ah |
| Cycle Life | 9000 cycles |
| Charging Voltage (Operation limit) | 3.65V |
| Discharging Voltage (Operation limit) | 2.5V (T>0℃)
2.0V (T≤0℃) |
| Standard energy | 896Wh |
| Weight | 5.42±0.16KG |
| Dimensions(mm) | Width 174.40±0.30mm
Height 207±0.40mm Thickness 71.4±0.30mm |
| Storage temperature | -40℃~65℃ |
